Locking Single Pole Connectors
LSP Series
The Locking Single Pole (LSP) Series consists of a range of Panel-Mounted and In-Line high current, single pole connectors.
Mechanically keyed, colour coded, and equipped with a secondary locking mechanism for additional safety. Available in two current ratings:
- 500A - Single core cables between 25mm² up to 150mmm²
- 800A - Single core cables between 150mmm² and 300mmm²
LSP Series Features
-
Secondary Locking
LSP Series connectors combine a bayonet lock with a secondary locking system to prevent accidental uncoupling,
-
Keyed and Colour Coded
LSP Series connectors are colour coded and mechanically keyed to prevent phase connection errors.
-
Finger Prof Noses
LSP contacts feature IP2X plastic noses to prevent touching of live contact.
-
IP67 When Mated
Protection from dust and water ingress to IEC60529
-
XL Variants available
Insulator options to fit cables from 10mm to 44mm outside diameter
-
Contact Options

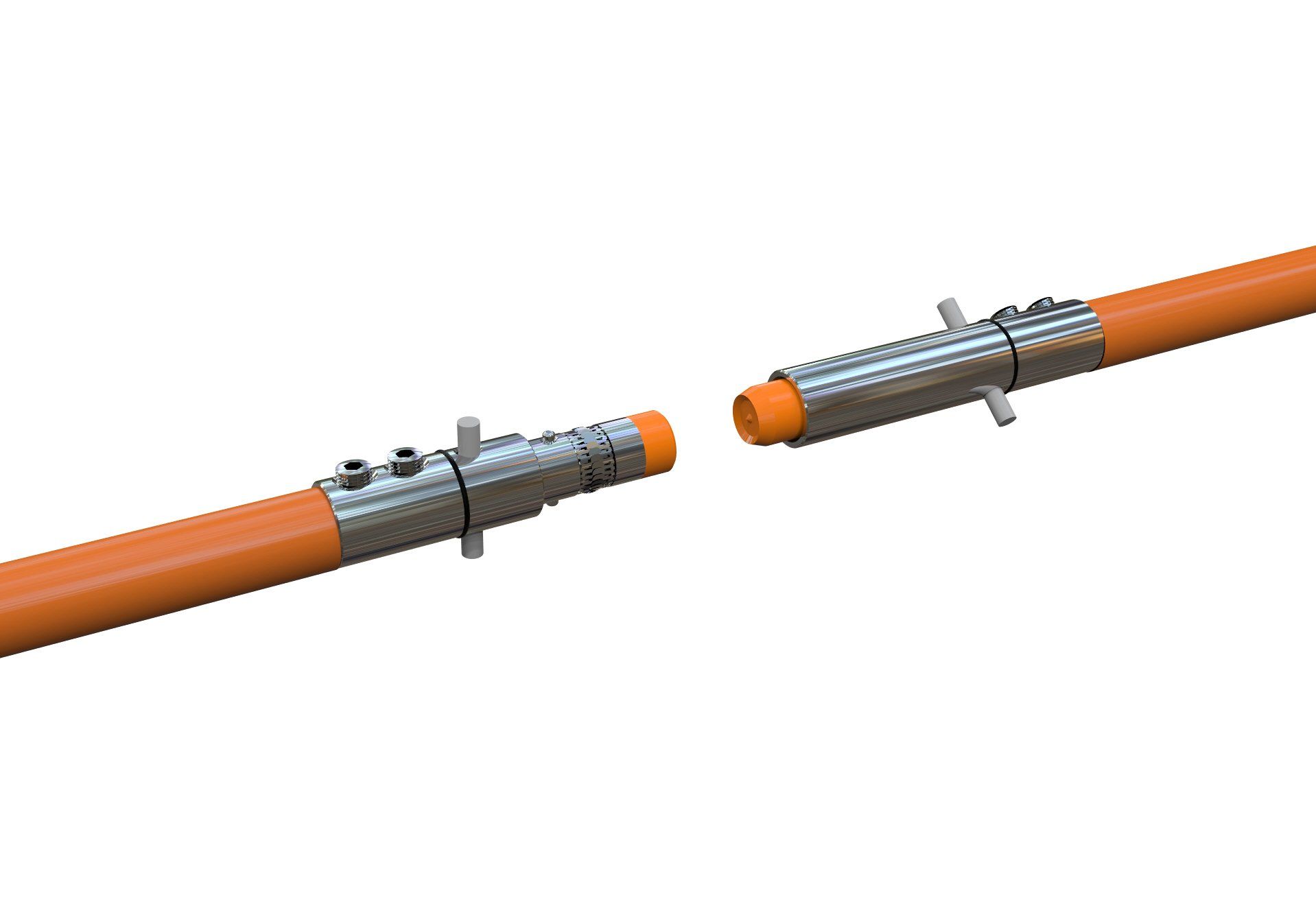

Source and Drain contacts are available with a range of termination options.
LSP Series Connectors
-
Panel
Panel mounted LSP connectors, fitted with M12 stud contact as standard.
-
Line

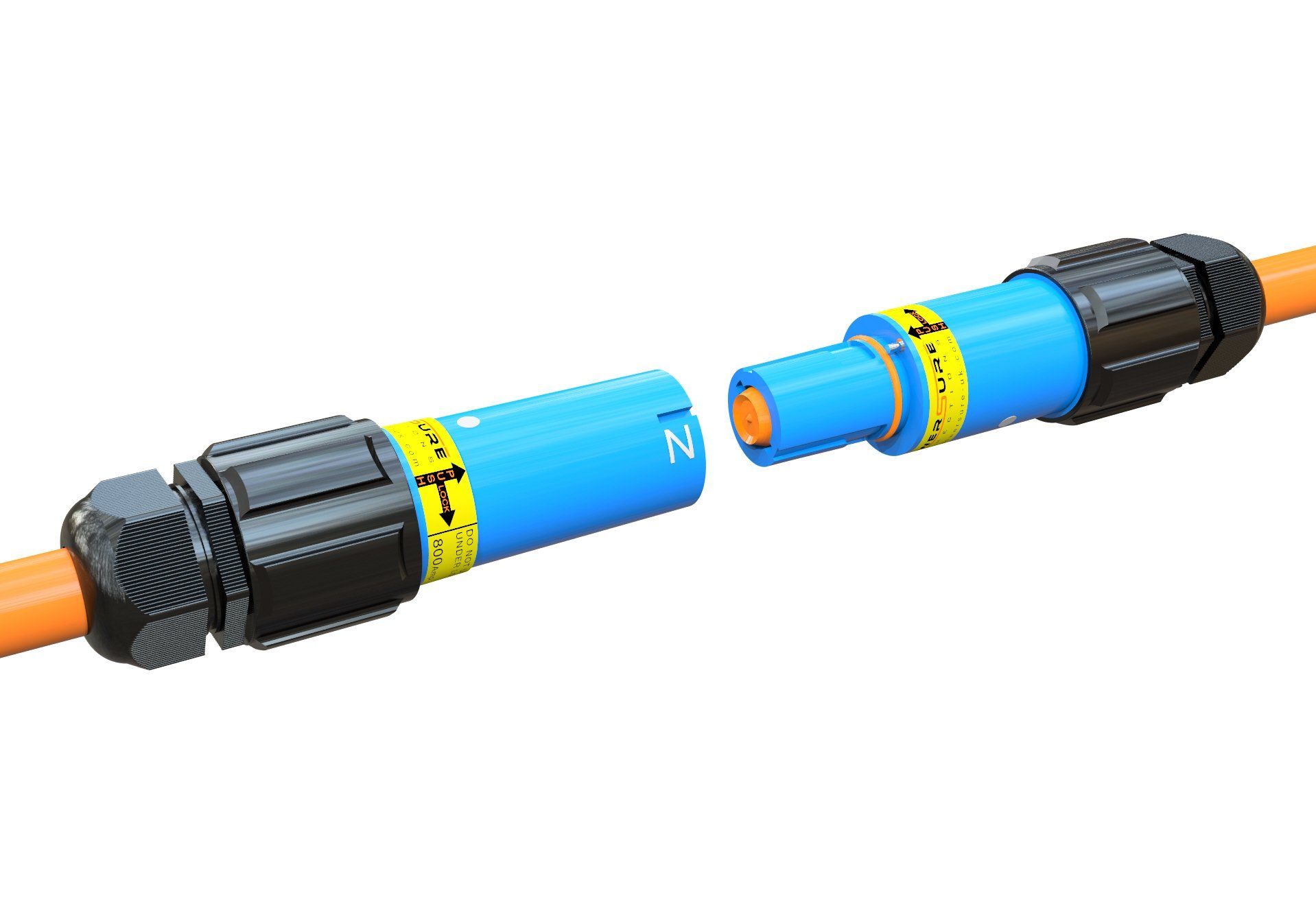

Inline connectors available with a range of contact options and cables of 10mm to 32mm Outside Diameter.
-
XL Line
Line connector with with a large gland adapter to fit cables with an Outside Diameter between 32mm and 44mm.
-
Lug Converter
800A Rated Adapters with M12 bolt, supplied with a rugged protective backshell for cables up to 44mm Outside Diameter.
Learn more...
-
Quick Release
Our Quick Release system replaces release keys for applications requiring rapid or regular uncoupling.
Learn more...
-
Low Smoke Zero Halogen
Our specially formulated Low Smoke Zero Halogen insulator compound
Learn more...
